1.80mm Wire To Board Connectors

(Total 4 Products)

1.80mm pitch SMT connector

Get Latest Price

Min. Order:1
Model No:A1801Series

The A1801WV-S-NP 1.80mm Pitch SMT Connector is a compact and durable Pcb Pin Header solution designed for high-density electronic modules. With a 1.8mm pitch and 2–15 poles, it provides stable electrical performance up to 1A at 100V AC/DC. Its PA9T...

Contact Now
1.80mm surface mount pin header

Get Latest Price

Min. Order:1
Model No:A1801Series

The 1.80mm Surface Mount Pin Header (A1801H-NP) offers a compact and reliable interconnection solution for modern PCB layouts. Designed with 2–16 poles and a 1.8mm pitch, this Pcb Pin Header ensures excellent electrical conductivity and mechanical...

Contact Now
1.80mm for wire-to-board connections PCB

Get Latest Price

Min. Order:1
Model No:A1801Series

The A1801WV-S-NP 1.80mm pitch pin header Pcb Connector is designed for reliable wire-to-board connections in compact electronic assemblies. Featuring 2–15 poles and an SMT mounting type, it ensures efficient soldering and strong electrical...

Contact Now
1.80mm Pitch Pin Header Connector

Get Latest Price

Min. Order:1
Model No:A1801Series

The A1801H-NP 1.80mm pitch Pin Header Connector is a compact and efficient interconnect solution ideal for high-density PCB layouts. Designed with 2–16 poles and rated at 100V AC/DC and 1A, this 1.80mm pitch header connector provides stable...

Contact Now

1.80mm Wire To Board Connectors

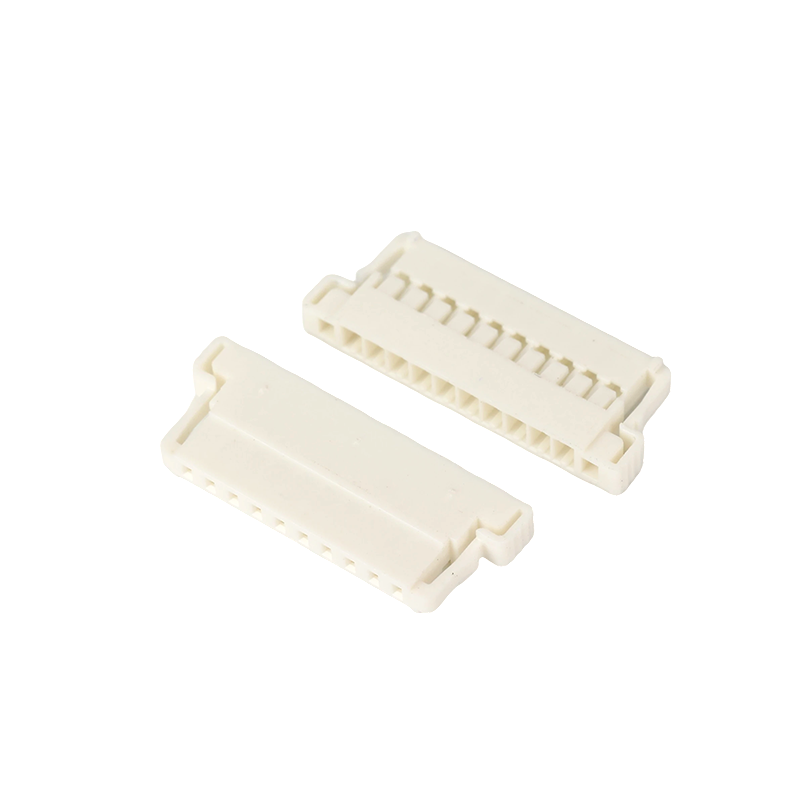

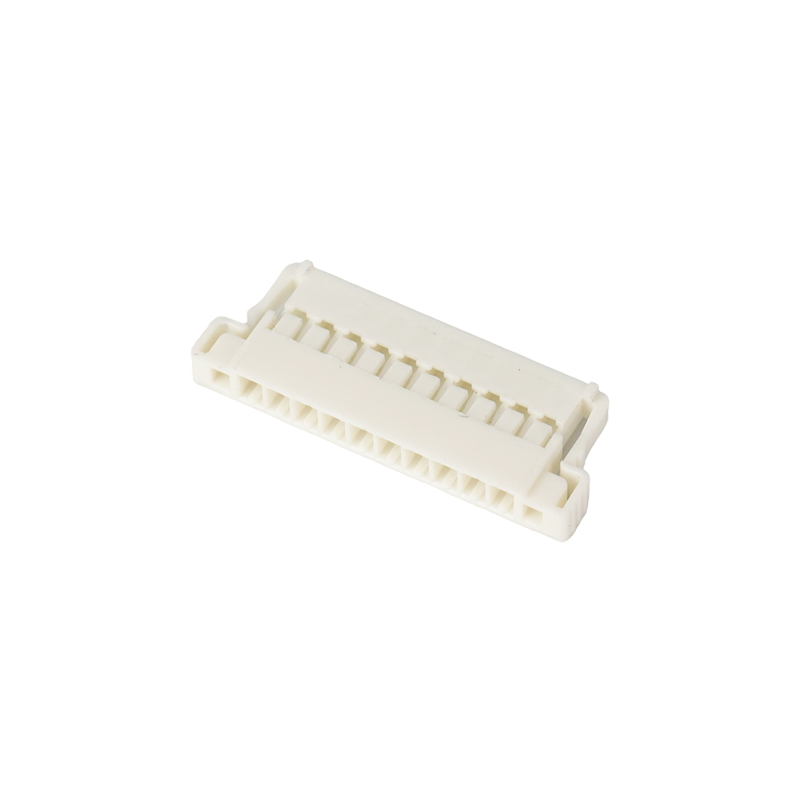

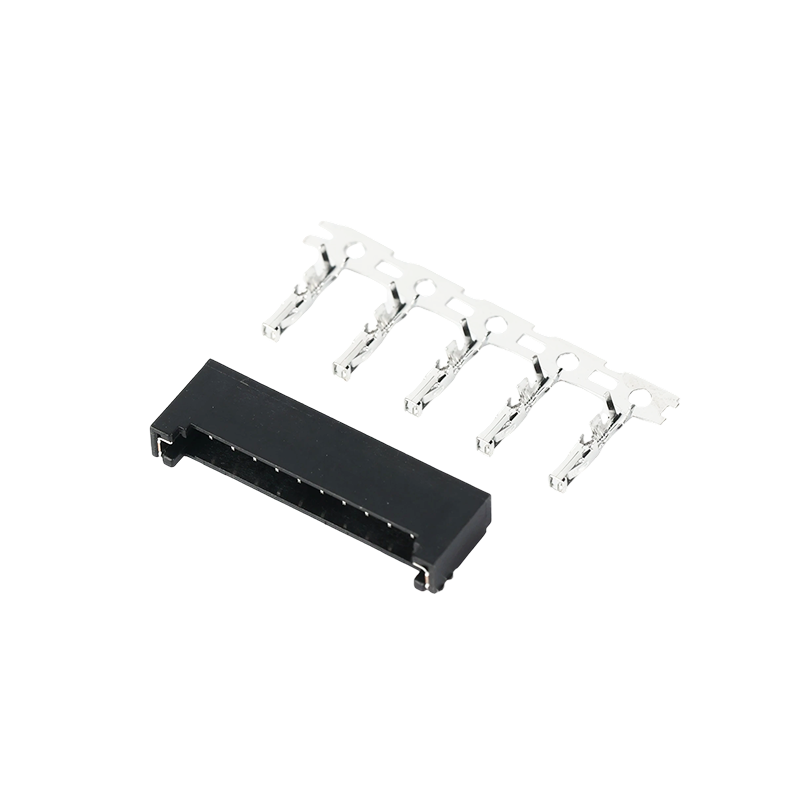

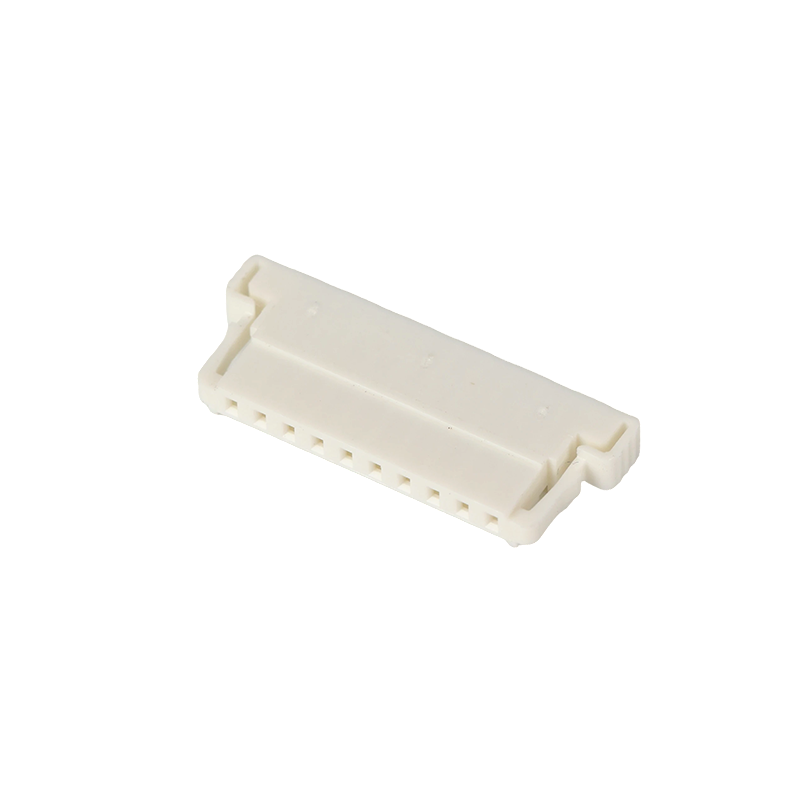

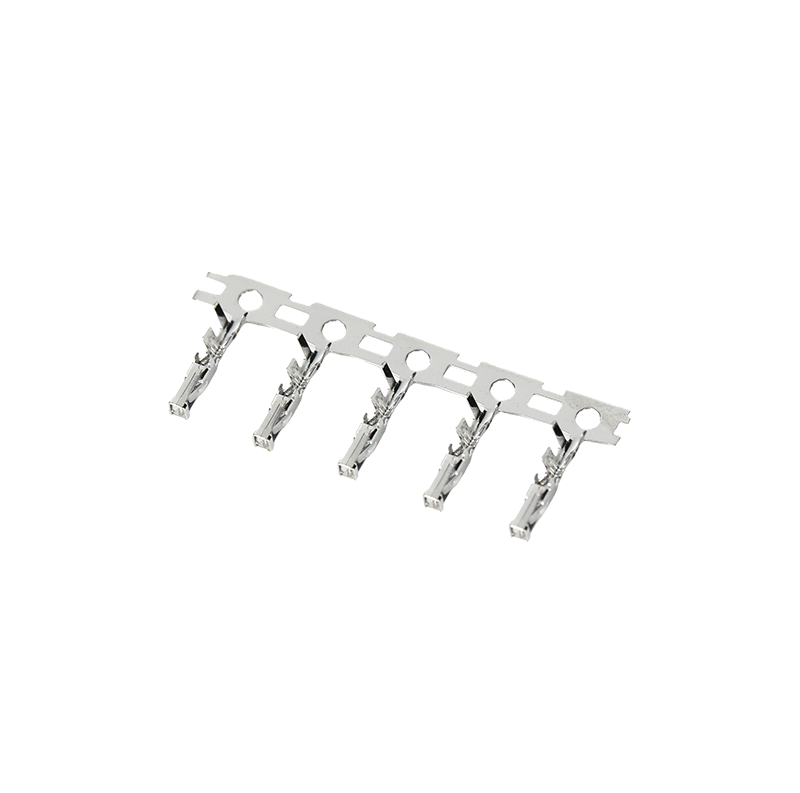

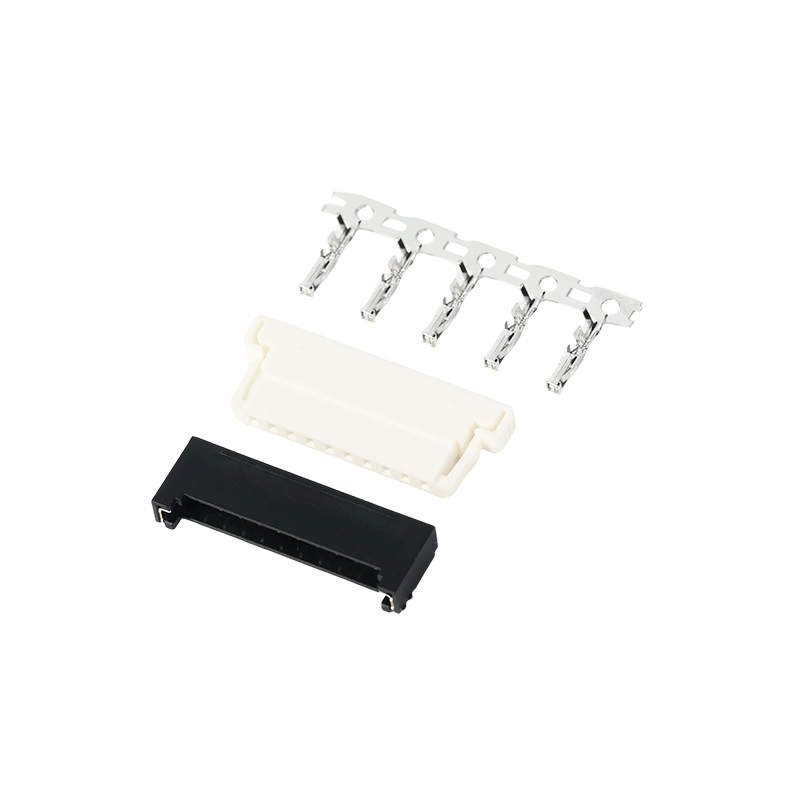

The 1.80mm Wire to Board Connector is a high-precision, fine-pitch interconnection solution designed for compact electronic applications requiring stable electrical performance. Built with high-quality phosphor bronze terminals and flame-retardant housing, it ensures excellent conductivity and mechanical durability. This connector series is ideal for high-density PCB layouts, offering reliable connections for data transmission, power delivery, and signal integrity in demanding electronic systems.

Product Features

Product Concept

Please listen to us

At JSWGD, our philosophy “Connecting the Future, Delivering Value” drives every step of product development. The 1.80mm connector series embodies our pursuit of precision, from material selection and tooling design to automated assembly and reliability testing—ensuring every connection is durable, efficient, and future-ready.

Original concept

Why Choose Us

Automotive Electronics Systems

n automotive applications, this connector is used in vehicle displays, navigation systems, sensor modules, and body control units. Its vibration resistance and heat tolerance make it ideal for use under harsh automotive conditions, ensuring long-term reliability.

Medical Devices and Diagnostic Instruments

In medical devices such as ECG monitors, blood pressure detectors, and surgical systems, this connector’s low contact resistance and precision terminals ensure accurate signal transmission, supporting the strict reliability standards of medical electronics.

Industrial Automation and Control Equipment

Suitable for PLCs, robotic systems, and servo drives, the 1.80mm connector provides compact wiring and strong anti-interference capability, ensuring stable performance even in environments with strong electromagnetic interference.

Communication and Networking Devices

Used in routers, switches, and wireless communication modules, it maintains low signal loss and stable connections, ideal for high-frequency, high-speed data communication applications.

FAQ

What is the pitch of this connector and why choose 1.80mm?

The 1.80mm pitch offers an optimal balance between compact size and mechanical strength, making it suitable for dense PCB layouts without sacrificing durability.

Can it handle both power and signal transmission?

Yes. The connector supports dual-function applications, ensuring stable power and low-noise signal transmission in compact systems.

What plating options are available?

Tin and gold plating are available depending on the customer’s application requirements. Gold plating is recommended for high-reliability use.

How does JSWGD ensure product consistency?

All connectors undergo 100% automated optical inspection and electrical testing before shipment.
