Home> Products> Wire To Board Connectors> 2.50mm Wire To Board Connectors

2.50mm Wire To Board Connectors

(Total 16 Products)

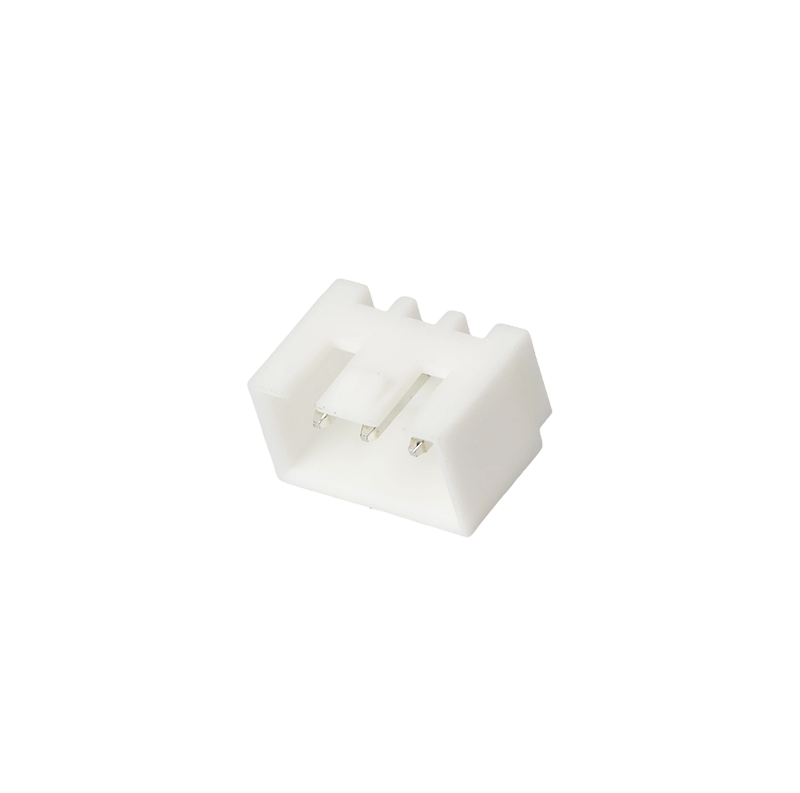

  • 3A Wire to Board Connector

    Get Latest Price

    Min. Order:1

    Model No:A2513Series

    The A2513H-NP 3A wire to board connector is designed specifically for stable power supply and signal transmission in compact electronic components. It adopts a 2.5mm spacing and offers 2-15 pole selection, supporting 250V AC/DC and 3A rated current,...

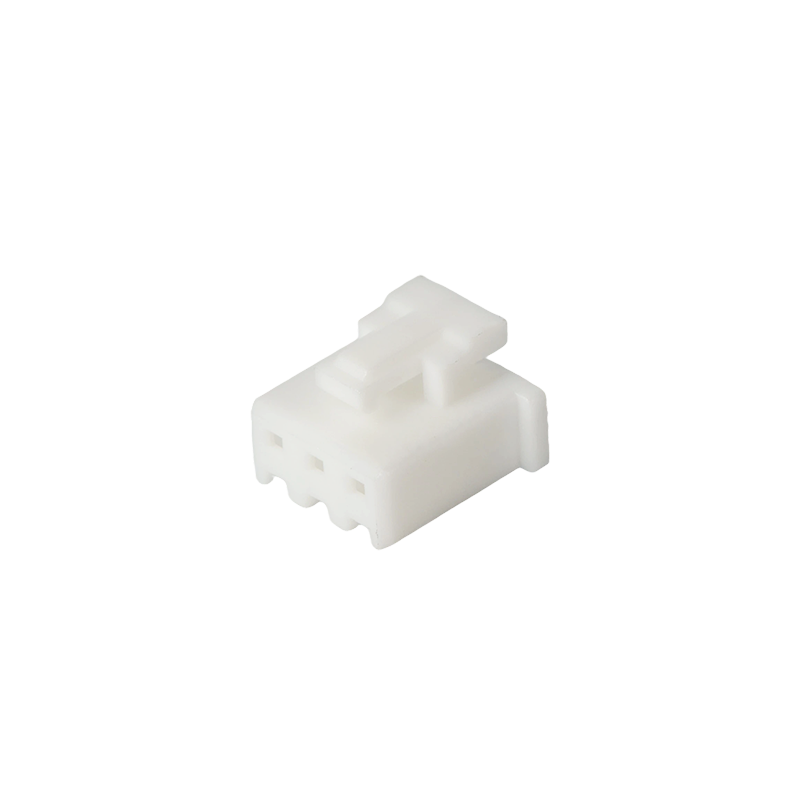

  • 2.5mm board to wire connector

    Get Latest Price

    Min. Order:1

    Model No:A2505Series

    The A2505H-NP 2.5mm board to wire connector series is designed to provide reliable electrical connections for devices that require stable medium current transmission. This series of connectors has 2 to 16 pole specifications, supports 250V AC/DC and...

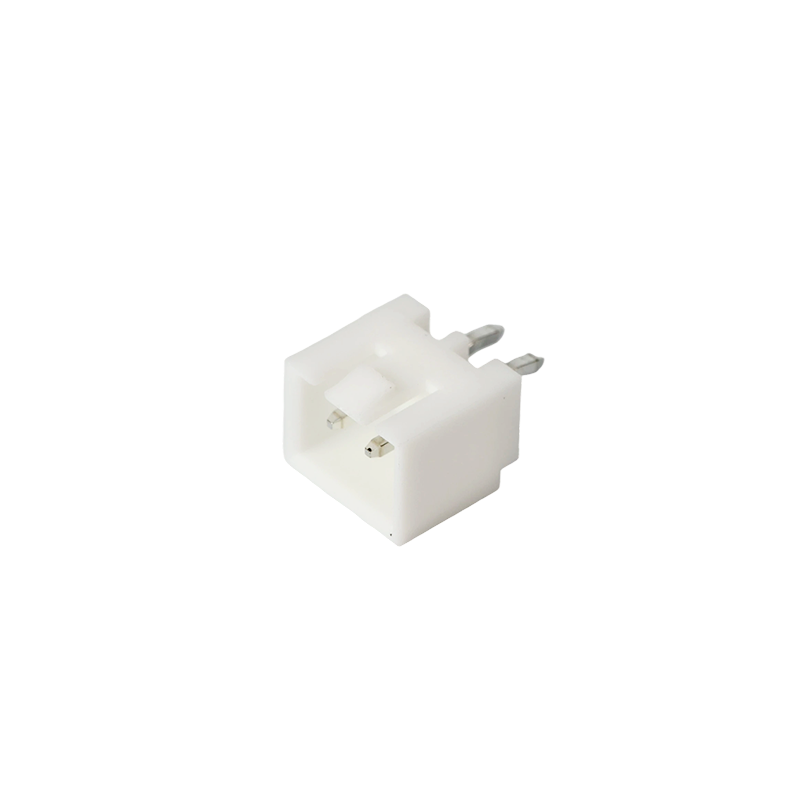

  • surface mount wire to board connector

    Get Latest Price

    Min. Order:1

    Model No:A2507Series

    This is the A2507H-NP connector, built to move power and signals in places where space is tight but reliability can't be. It sits flat on your board (surface mount) and reliably connects wires directly to the PCB. We make it with a sturdy pitch of...

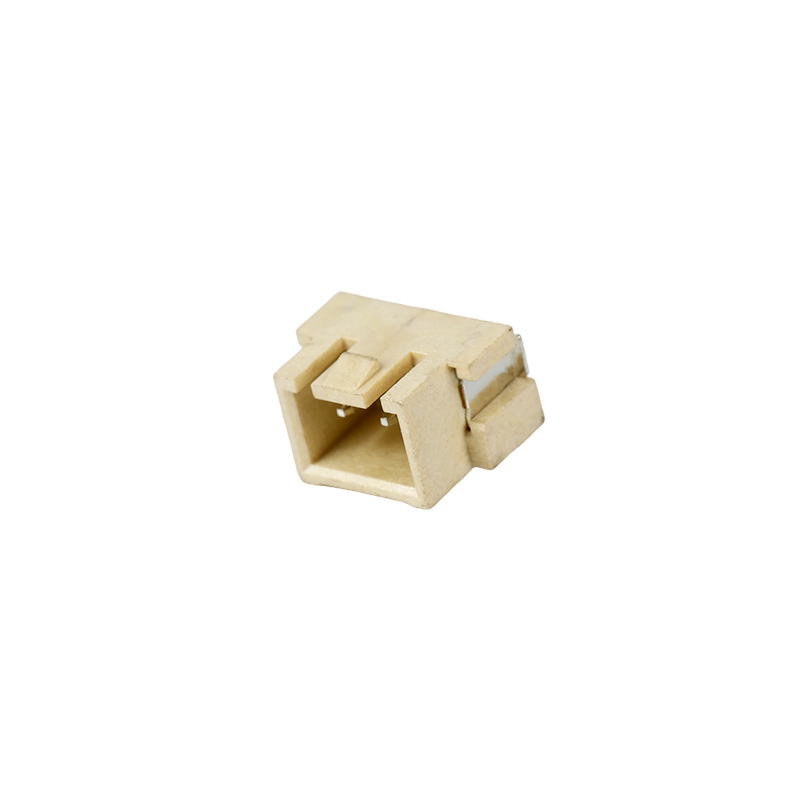

  • 2.5mm Wire To Board Connectors

    Get Latest Price

    Min. Order:1

    Model No:A2502Series

    The A2502H-NP 2.5mm wire to board connector series is designed specifically for stable power supply and signal transmission in compact electronic components. This series offers 2 to 16 pole specifications, supporting 250V AC/DC and 2.5A rated...

  • 2.50mm SMT pin header connector for power

    Get Latest Price

    Min. Order:1

    Model No:A2512Series

    The A2512WR-S-NP 2.50mm SMT Pin Header Connector for power is designed for high-performance electronic assemblies, accommodating 2–15 poles with a rated voltage of 250V AC/DC and a current of 3A. Made from robust LCP UL94V-0 material, it delivers...

  • 2.50mm DIP Pin Header Connector PCB Mounting

    Get Latest Price

    Min. Order:1

    Model No:A2512Series

    The A2512H-NP 2.50mm DIP Pin Header Connector is a robust solution engineered for reliable PCB connections in both industrial and consumer electronic applications. Supporting 2–15 poles with a 2.5mm pitch, this connector is rated for 250V AC/DC and...

  • 2.50mm Pin Header Connector for PCB Assembly

    Get Latest Price

    Min. Order:1

    Model No:A2512Series

    The A2512WV-S-NP 2.50mm Pin Header Connector is engineered for robust and precise PCB assemblies, supporting 2–15 poles with a 2.5mm pitch. Rated at 250V AC/DC and 3A, this connector ensures stable electrical performance with an insulation...

  • 2.50mm pin header connector suitable for industrial

    Get Latest Price

    Min. Order:1

    Model No:A2512Series

    The A2512H-NP 2.50mm Pin Header Connector is engineered for demanding industrial applications where reliable connectivity is essential. Supporting 2–15 poles, this connector operates at 250V AC/DC with a 3A current rating and provides excellent...

  • 2.50mm for wire-to-board connections PCB

    Get Latest Price

    Min. Order:1

    Model No:A2501Series

    The A2501WV-S-NP 2.50mm Wire-to-Board Pin Header Connector is engineered for reliable electrical connections in high-performance applications, offering a rated voltage of 250V AC/DC and 3A current capacity. Featuring 2–16 poles, 800V AC withstand...

  • 2.50mm Pin Header Connector for Industrial PCBs

    Get Latest Price

    Min. Order:1

    Model No:A2501Series

    The 2.50mm Pin Header Connector for Industrial PCBs is a durable and versatile interconnect solution built for industrial automation, control panels, and electronic equipment. Featuring a 2.50mm pitch with 2–16 poles, it supports 250V AC/DC and 3A...

  • 2.50mm DIP Pin Header Connector PCB Use

    Get Latest Price

    Min. Order:1

    Model No:A2501Series

    The A2501WR-S-NP 2.50mm DIP Pin Header Connector is designed for reliable PCB connectivity in a wide range of electronic applications. With 2–16 poles, it supports 250V AC/DC and 3A rated current, providing secure contact performance and insulation...

  • 2.50mm pitch pin header connector for power

    Get Latest Price

    Min. Order:1

    Model No:A2512Series

    The A2512WV-S-NP 2.50mm pitch Pin Header Connector for power is designed for robust and high-reliability electronic applications. With 2–15 poles, a rated voltage of 250V AC/DC, and a 3A current capacity, this connector ensures stable and secure...

  • 2.50mm pitch standard pin header connector

    Get Latest Price

    Min. Order:1

    Model No:A2501Series

    The A2501WR-S-NP 2.50mm Pitch Standard Pin Header Connector provides a reliable interface for industrial and electronic systems, accommodating 2–16 poles with a 250V AC/DC rated voltage and 3A current. Constructed from high-temperature LCP UL94V-0,...

  • 2.50mm SMT Pin Header Connector for PCBs

    Get Latest Price

    Min. Order:1

    Model No:A2512Series

    The A2512WR-S-NP 2.50mm SMT Pin Header Connector for PCBs is a compact and durable interconnect solution designed for modern electronic assemblies. With 2–15 poles and a 2.50mm pitch, it delivers stable signal transmission and supports 250V AC/DC at...

  • 2.5mm pitch SMT connector

    Get Latest Price

    Min. Order:1

    Model No:A2501Series

    The A2501WV-S-NP 2.5mm pitch SMT connector is designed for secure and efficient PCB connections in compact electronic devices. With 2–16 poles, it supports 250V AC/DC and 3A rated current, offering stable electrical performance and high insulation...

  • 2.50mm Pitch Pin Header Connector

    Get Latest Price

    Min. Order:1

    Model No:A2501Series

    The A2501H-NP 2.50mm Pitch Pin Header Connector is designed for high-current applications, supporting a rated voltage of 250V AC/DC and a current up to 3A. With 2–16 poles and an 800V AC withstand voltage, this pcb pin header offers exceptional...

2.50mm Wire To Board Connectors
The JSWGD 2.50mm Wire-to-Board Connector is a compact and high-precision interconnection solution designed for mid-range current and multi-signal transmission applications. Featuring a standard 2.50mm pitch, it balances high-density PCB layout with stable electrical performance. The terminals are made from high-conductivity copper alloy with tin or gold plating, minimizing contact resistance and ensuring long-term reliability under high vibration or humid conditions.

Product Features

Product Concept
Please listen to us
At JSWGD, we believe that every connection should be precise, stable, and reliable. Our 2.50mm series reflects this philosophy—balancing mechanical precision, signal integrity, and assembly efficiency. With in-house tooling and automated production, we ensure not only consistent product quality but also enhanced ease of installation and maintenance. A truly great connector should be invisible yet indispensable, powering every device with reliability and performance.
Original concept

Competitive Advantages

Jiansheng Rongye's competitive advantages
1
Direct replacement for JST XH and Molex 51021 connectors.
2
In-house tooling with ±0.02mm dimensional tolerance.
3
Passed mating cycle, salt spray, temperature, and vibration tests.
4
Ensures consistency and minimizes human error.
5
Mass production capability and flexible lead times.
6
Customizable in pin count, wire type, color, and packaging.
7
Certified by UL, ROHS, and REACH standards.
8
Provides 3D models, samples, and engineering assistance.
FAQ
What are the differences between the 2.50mm and 2.54mm series connectors?
They look similar, but 2.50mm has a tighter pitch for high-density layouts and is not interchangeable with 2.54mm.
Are your connectors compatible with Molex or JST?
Yes, fully compatible with Molex 51021 and JST XH series.
If I have a special pin configuration, is it possible to make a mold?
Yes, we provide custom tooling service with sample delivery in about two weeks.
How to ensure product consistency between batches?
Each batch is tested automatically for dimensional and electrical consistency.
